PTO Installation Service Fitted by the Team That Builds Them
Bring your truck to our Pathum Thani factory or have our technicians come to you. Most installations take about 2–3 hours, and every job is measured and tested before handover.
We build the PTOs we fit
The technicians who install your PTO come from the factory that makes it, so they know every model’s fit, ratio and control set-up.
Every control type
Cable-shift, air-shift (suction or push), direct pump mount and drive-shaft output — including SAE, UNI and ISO pump flanges.
Factory or on-site
Bring the truck to Pathum Thani, or our technicians travel to your yard — travel cost is quoted by distance.
Measured and tested
Every job is measured with instruments and function-tested before the truck goes back to work. Electronic throttle fitting available.
PTO Installation Service
Power Take-Off Installation for Every Major Truck Brand
VPS Equipment manufactures Power Take-Off (PTO) units in Thailand — and installs them too. Our technicians fit PTOs to Hino, Isuzu, Nissan UD, Mitsubishi Fuso, Hyundai, Volvo, ZF and Eaton gearboxes, connect them to the hydraulic pump or equipment they drive, and check the whole system before the truck goes back to work.
Because we build the PTOs ourselves, the technicians fitting them know each model’s fit and ratio — and if a truck needs something adapted, we can modify parts to suit.
See every PTO model on our PTO product pages — or just send us your gearbox model and we’ll match it for you.
5 Steps
How a PTO Installation Job Runs
From your first message to driving the truck away — most installations are finished the same day.
-
Send your truck brand and gearbox model
Add what the PTO has to drive — a hydraulic pump, water pump or other equipment. LINE, email or a phone call all work.
-
We confirm the right PTO and quote the job
We check your gearbox against our fitting data, pick the ratio and the control type that suit the work, and quote the unit plus installation.
-
Agree a date and a place
Our Pathum Thani factory, or our technicians come to you — travel cost is quoted from the distance to your yard.
-

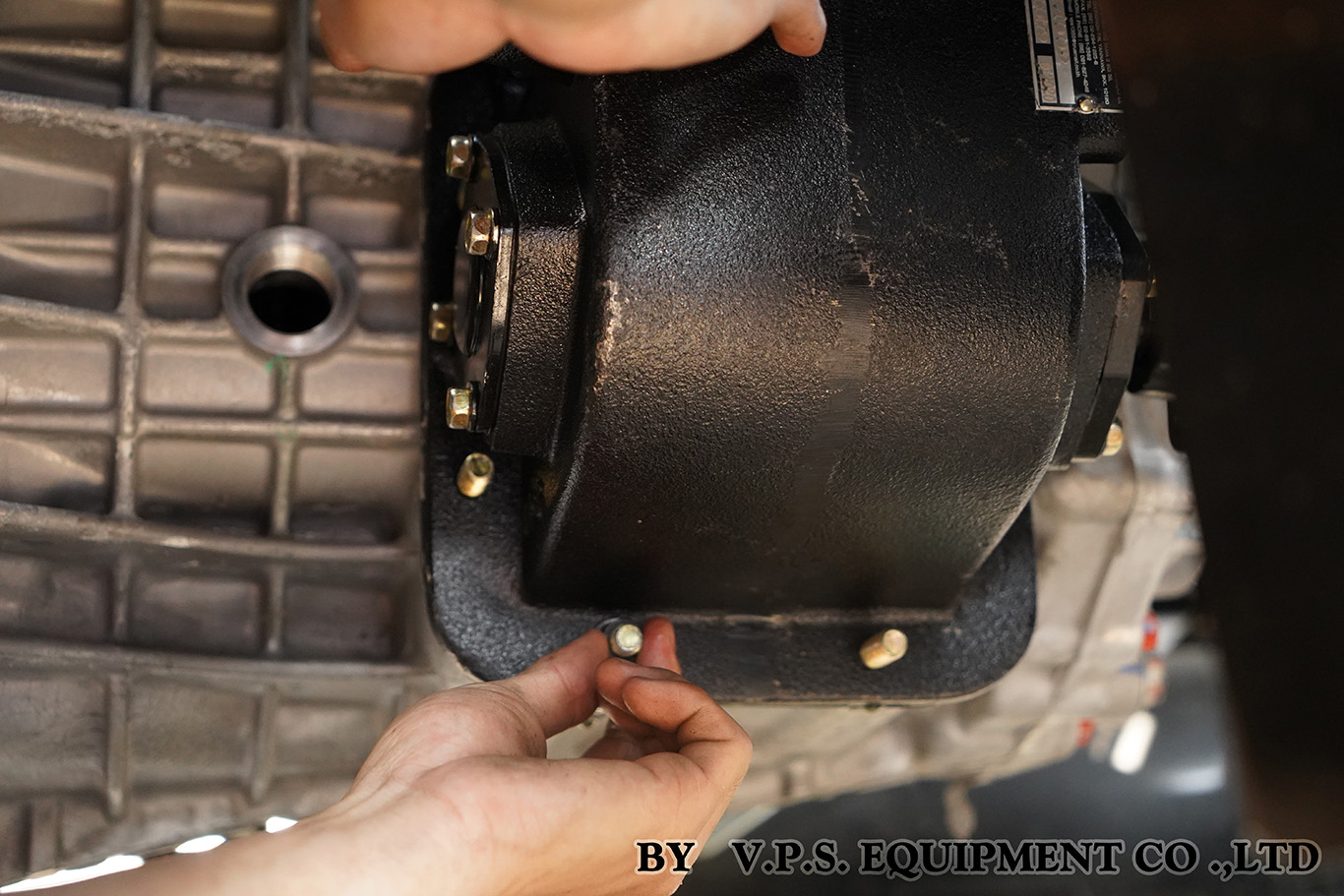

Installation by experienced technicians
Most trucks take about 2–3 hours, including the cab control and an electronic throttle if you want one.
-

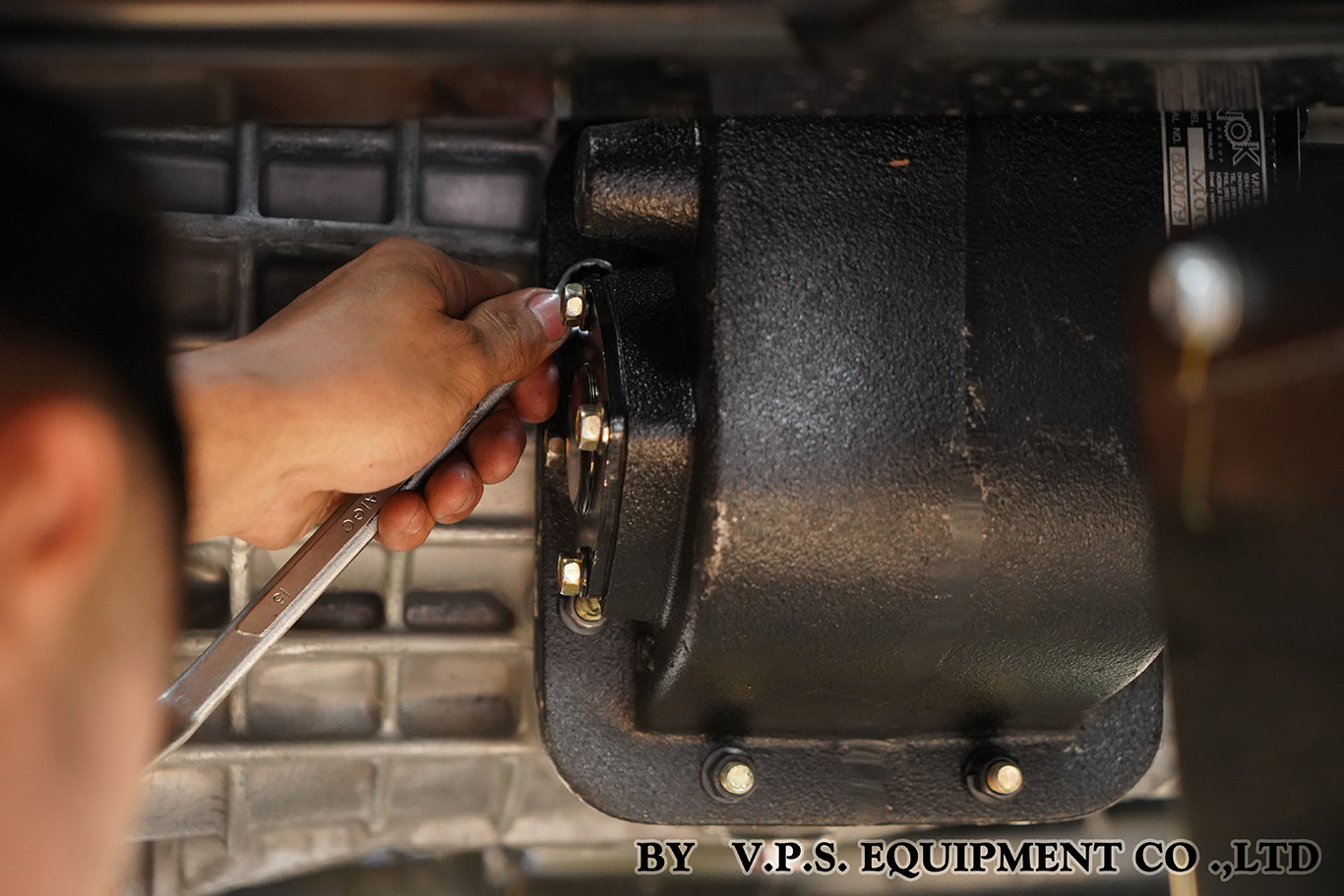

Measured, tested and handed back ready to work
We measure with instruments, run the system under load, and show you how to operate and look after it before you leave.
Watch a real installation
A VPS field team fitting a PTO on a customer's truck.
Control Systems
Complete PTO Systems — Every Control Type
A PTO is only as good as the way it engages. We fit the whole system: the control in the cab, the engagement mechanism on the unit, and the output to the pump or drive shaft.
Cable-shift PTO
Engaged with a pull cable from the cab. Fully mechanical, simple to operate and easy to service.
Air-shift — suction type
An air cylinder pulls the PTO into engagement, switched from the cab. Suits trucks that already run an air system.
Air-shift — push type
The same cab switch with a push-type cylinder, chosen to match the gearbox and the space around the PTO opening.
Cable-shift, direct pump mount
The hydraulic pump bolts straight onto the PTO — no drive shaft needed, which saves space and removes an alignment point.
Air-shift, direct pump mount
A directly mounted pump with air engagement from the cab — a common set-up on mixers, cranes and tankers.
Drive-shaft (cardan) output
Power goes out through a drive shaft to a pump or piece of equipment mounted away from the gearbox. We check the shaft angle and alignment as we fit it.
Pump flanges: SAE, UNI and ISO
Direct-mount work covers SAE, UNI and ISO pump flange standards. Send us the pump model — or a photo of the flange — and we’ll confirm the flange and shaft before the job starts.
Read more: how the engagement types differ, and how to choose a PTO for your truck.
PTOs made in Thailand since 1994 — fitted by the same team
Dump trucks, mixers, water trucks, cranes and tankers: we supply the PTO, the pump and the controls, then install and test the lot.
What’s Included
What the Service Covers
- Confirming the right PTO for your gearbox and application
- Mounting the PTO to the gearbox’s PTO opening
- Connecting the drive shaft or hydraulic pump
- Setting up the engagement control — cable, air suction, air push or direct pump mount
- Electronic throttle (engine RPM) control installation
- Measuring and testing with instruments on every job
- Modifying parts when a truck needs a custom fit
Where We Install
Two Ways to Install
At Our Factory
Bring the truck to our factory at 89/9 Khlong Phra Udom, Lat Lum Kaeo, Pathum Thani. Book a time and we’ll have the right PTO and parts ready.
On-Site at Your Location
Our technicians can travel to your yard or workshop. Travel cost is quoted based on distance — tell us where the truck is when you book.
Applications
Trucks and Equipment These PTOs Drive
Which PTO you need depends on the gearbox, not the body on the back — a dump truck and a mixer on the same gearbox take the same PTO. Tell us the gearbox model and we’ll match it.
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
Something else?
Vacuum trucks, slide-bed tow trucks, street sweepers, fire trucks and farm machinery all run on a PTO too.
Ask about your truck ›PTO Installation FAQ
Tap a question to open the answer.
How long does PTO installation take?
Most installations take about 2–3 hours per truck. Jobs that need parts modified can take longer.
Can your technicians install the PTO at my location?
Yes. We can install at our Pathum Thani factory or travel to your site. Travel cost is quoted based on distance.
Which PTO control types can you install?
All of them: cable-shift, air-shift (suction or push), cable- or air-shift with the pump mounted directly on the PTO, and drive-shaft (cardan) output.
Which pump flange standards do you fit?
SAE, UNI and ISO. Send us the pump model or a photo of the flange and we’ll confirm the flange and the shaft spline before the job.
What should I send you before booking?
Your truck brand and model, the gearbox model, what the PTO has to drive (the pump or equipment model if you know it), and where the truck is. A photo of the gearbox speeds things up.
Can you install an electronic throttle at the same time?
Yes — we install electronic throttle (engine RPM) controls, which keep engine speed steady for PTO-driven hydraulics. What is an electronic throttle?
Do you install PTOs from other manufacturers?
Our service is mainly for VPS PTOs, which we know inside out. Contact us about your truck and we’ll let you know what we can do.
Can I install a PTO myself?
Experienced mechanics can, but details such as gasket count, bolt torque and oil levels differ by model. See our installation guide, or let our technicians fit it for you.
Book a PTO Installation
Tell us your truck brand, gearbox model and where the truck is — we’ll confirm the PTO, the price and a time.
Wondering what drives the price? Read what a PTO's price depends on.
